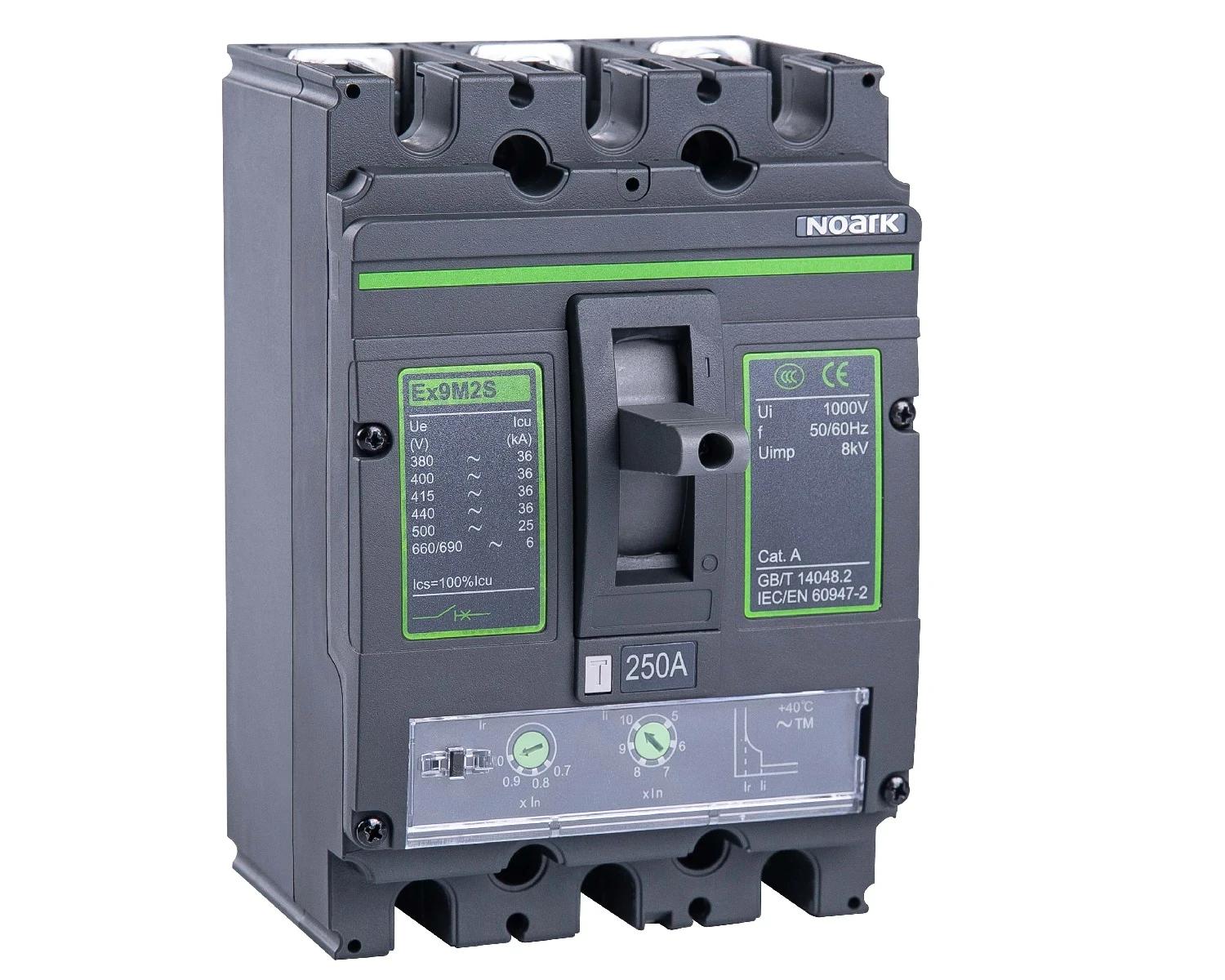

Ex9M2S TM 250 3P
111906
8592765119063
Moulded Case Circuit Breakers Ex9M TM are intended for applications in power distribution mainly. Testing according to IEC / EN 60947-2 standards ensures functions and reliability for wide variety of applications including isolation. These breakers are off ered with breaking capacities from 36 kA up to extreme 150 kA. Rated impulse withstand voltage Uimp 8 kV makes it possible to use them even in system with occurences of transient overvoltage waves of high intensity, e.g. in heavy industry.
| Type | Thermomagnetic |
| Rated permanent current Iu [A] | 250 |
| Rated voltage [V] | 415-690 |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz [kA] | 36 |
| Overload release current setting [A] | 175-250 |
| Adjustment range undelayed short-circuit release [A] | 1250-2500 |
| Integrated earth fault protection | Ne |
| Type of electrical connection of main circuit | Frame clamp |
| Device construction | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting | Ne |
| DIN rail (top hat rail) mounting optional | Da |
| Switched-off indicator available | Ne |
| With under voltage release | Ne |
| Number of poles | 3 |
| Position of connection for main current circuit | Front side |
| Type of control element | Rocker lever |
| Complete device with protection unit | Da |
| Motor drive integrated | Ne |
| Motor drive optional | Da |
| Degree of protection (IP) | IP20 |
